Overview

Yipu Shale Gas Pre-Cooler delivers three core values through professional technologies:

  1. Outstanding Economic Benefits: Pressure energy recovery system improves energy efficiency by 30%; adapts to pressure depletion characteristics to extend the effective operating time of equipment.
  2. Strong Adaptability: Stable operation across a wide pressure range; intelligently adapts to shale gas compositions from different blocks.
  3. Rapid Investment Payback: Modular design shortens commissioning time; intelligent operation and maintenance reduce operating costs.

This product is particularly suitable for various shale gas development scenarios, serving as a key pre-treatment equipment for efficient shale gas exploration and utilization. The typical investment payback period is 1.5-2 years.

I. Market Pain Point Analysis

  1. Complex and Variable Shale Gas Compositions
    • Shale gas compositions vary significantly across different blocks, with methane content fluctuating widely (65%-95%).
    • Contains large amounts of impurities such as nitrogen and carbon dioxide, leading to poor adaptability of traditional equipment.
  2. Severe Fluctuations in Production Pressure
    • Shale gas well pressure rapidly depletes from 8.0MPa to below 0.5MPa.
    • Conventional equipment struggles to operate stably over a wide pressure range.
  3. Low Energy Efficiency Utilization
    • Shale gas extraction consumes high energy, while traditional pre-cooling equipment has low energy efficiency ratio.
    • Pressure energy is not effectively recovered and utilized.

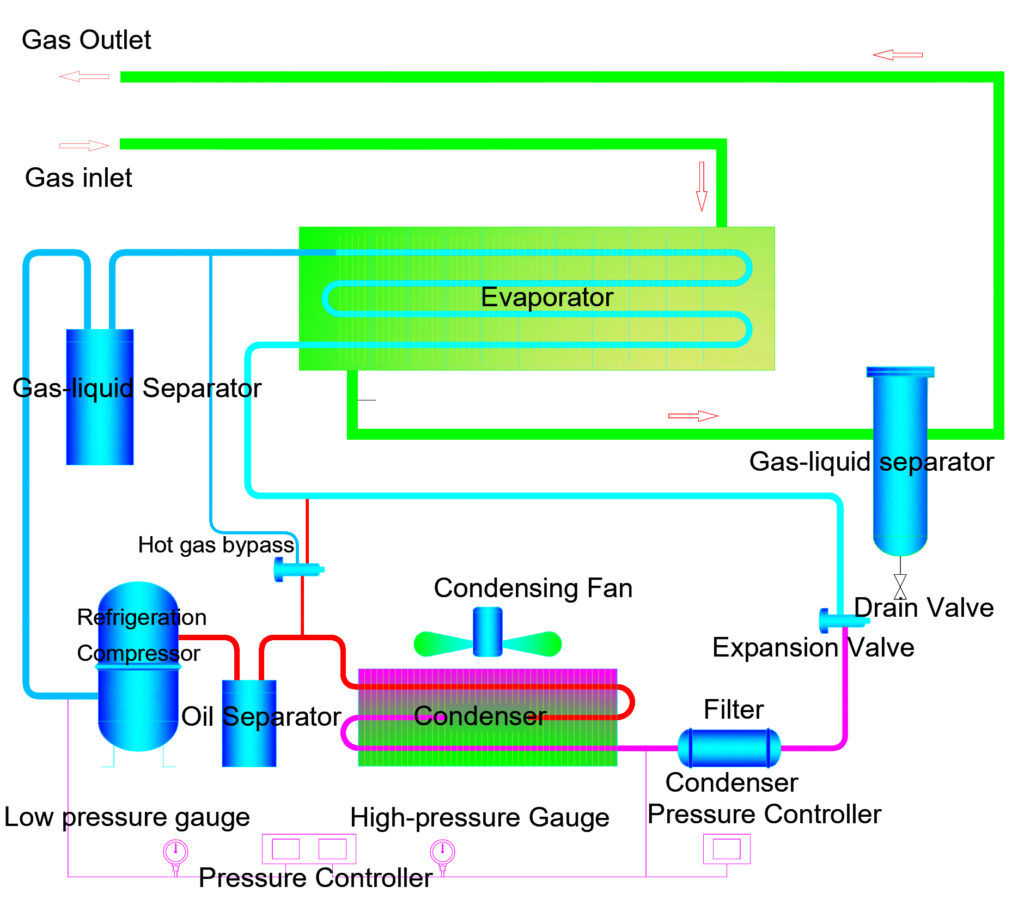

II. System Process Flow

Intelligent Four-Stage Pre-Cooling System:

  1. Pressure Energy Recovery Stage
    • High-pressure shale gas (≤8.0MPa) enters the expander power generation unit.
    • Pressure energy is recovered, and the gas is pre-cooled to an intermediate temperature.
  2. First-Stage Deep Pre-Cooling
    • Expanded gas enters the plate-fin main heat exchanger.
    • Heat exchange with the refrigerant cools the gas below the dew point.
  3. Heavy Hydrocarbon Separation Stage
    • Pre-cooled gas enters the high-efficiency separator.
    • Heavy hydrocarbon components (C3+) and condensed water are separated.
  4. Precise Temperature Control
    • PLC intelligently adjusts system parameters.
    • Ensures the outlet temperature remains stable within the range of 2-15℃.

III. Working Principle

Adaptive Refrigeration Technology:

  • Adopts mixed refrigerant cycle to automatically adapt to changes in gas composition.
  • Integrates pressure energy recovery system to improve overall energy efficiency.

Intelligent Control Algorithm:

  • Adjusts operating parameters based on real-time gas composition.
  • Pressure adaptive control ensures stable operation over a wide pressure range.
  • Anti-freezing and anti-clogging early warning and protection system.

IV. Core Advantages

  1. Wide Pressure Adaptability
    • Operating pressure range: 0.05-8.0MPa, perfectly matching the pressure depletion characteristics of shale gas wells.
    • Outlet temperature stability of ±1℃ during pressure fluctuations.
  2. High-Efficiency and Energy-Saving Design
    • Integrates pressure energy power generation and recovery system, reducing energy consumption by 30%.
    • Adaptive refrigeration technology improves partial-load energy efficiency by 25%.
  3. Intelligent Composition Adaptation
    • Automatically identifies changes in gas composition and optimizes operating parameters.
    • Handles shale gas with methane content ranging from 65% to 95%.
  4. Modular Rapid Deployment
    • Integrated skid-mounted design shortens on-site installation cycle by 50%.
    • Suitable for the rapid commissioning needs of shale gas well sites.

V. Technical Strength

Core Technology Patents:

  • Wide pressure range adaptive control technology.
  • Shale gas multi-component intelligent identification technology.
  • Anti-freezing and anti-clogging early warning and protection system.

Manufacturing Process Advantages:

  • Professional manufacturing qualification for high-pressure systems (8.0MPa).
  • Special materials to resist corrosive components in shale gas.
  • Strict airtightness testing standards.

VI. Product Series Introduction

Specialized Series Configuration:

  • YP-SGP-200 Series: 60-500 Nm³/min (Single Well Group)
  • YP-SGP-500 Series: 600-2000 Nm³/min (Small Gas Gathering Station)
  • YP-SGP-2000 Series: 2500-5000 Nm³/min (Medium-Sized Processing Station)
  • YP-SGP-5000 Series: 6000-10000 Nm³/min (Large-Scale Processing Center)

Customization Options:

  • High-pressure explosion-proof configuration (8.0MPa)
  • Mobile rapid deployment version
  • Remote intelligent operation and maintenance system

VII. Application Scenario Solutions

Shale Gas Extraction Scenarios:

  • Direct pre-treatment at single well sites, centralized pre-cooling of cluster well groups, front-end temperature control at gas gathering stations.

Liquefaction Application Scenarios:

  • Pre-treatment for shale gas liquefaction facilities, pre-treatment for LNG liquefaction peak-shaving stations.

Pipeline Transportation Application Scenarios:

  • Dew point control before shale gas pipeline transportation, pre-treatment for compressed natural gas (CNG) production.

Special Application Scenarios:

  • Associated gas recovery from flowback fluid, temporary treatment equipment during the pilot production period.
