Biogas Pre-Cooler

Overview

Yipu Biogas Pre-Cooler achieves three core values through innovative temperature control technology:

1. Enhanced Overall System Efficiency: Precise temperature control creates optimal conditions for subsequent processes, improving desulfurization efficiency and biogas quality.
2. Significant Energy Conservation: High-efficiency refrigeration system reduces energy consumption by over 25%; optional waste heat recovery further enhances energy efficiency.
3. Reliable and Stable Operation: Adapts to various biogas compositions and operating condition changes; intelligent monitoring system ensures long-term stable operation.

This product is particularly suitable for large-scale biogas projects and biogas power generation projects, serving as a key pre-treatment equipment for efficient biogas utilization.

I. Market Pain Point Analysis

1. Low Biogas Treatment Efficiency
   • Traditional pre-treatment equipment lacks precise temperature control, affecting the efficiency of subsequent processes such as desulfurization.
   • Large fluctuations in biogas temperature lead to unstable subsequent processes and poor purification effects.
2. Severe Energy Waste
   • A large amount of waste heat generated during biogas production is not effectively utilized.
   • Traditional cooling methods have high energy consumption, resulting in persistently high operating costs.
3. Poor Equipment Adaptability
   • Biogas compositions vary significantly across different gas sources, making conventional equipment difficult to universalize.
   • Performance is unstable when processing capacity changes, affecting continuous production.

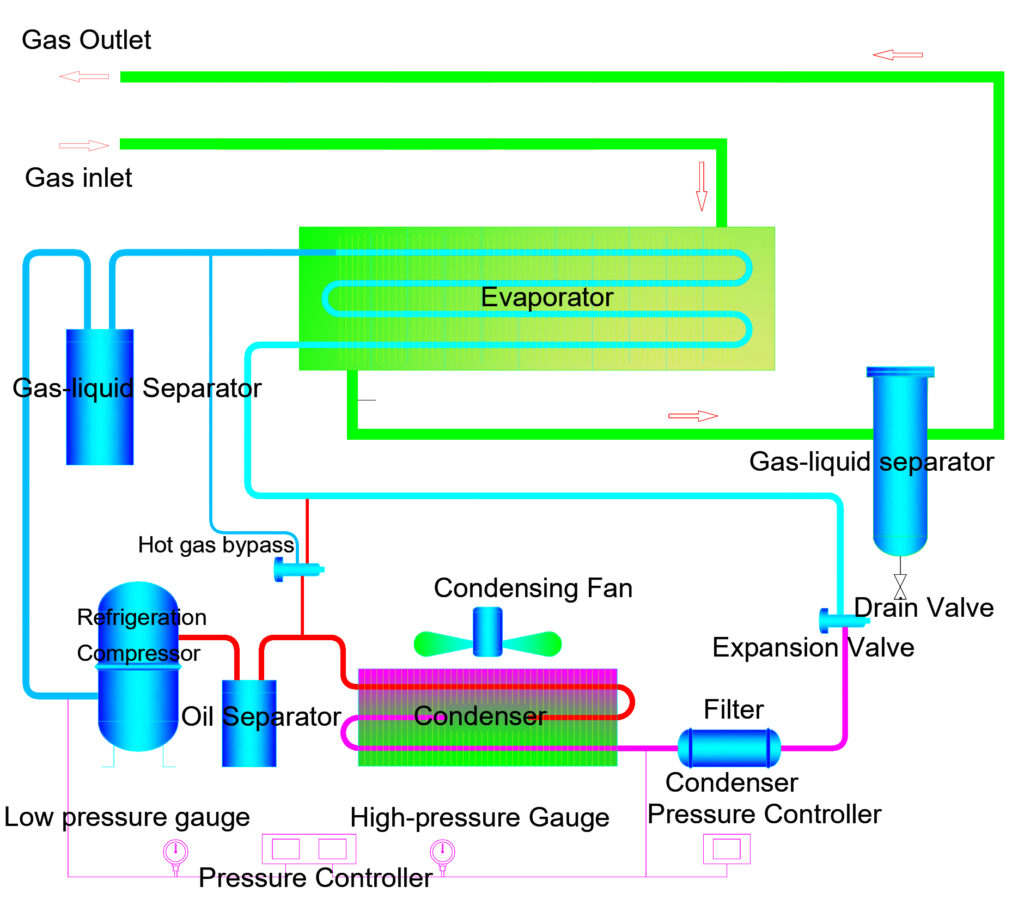

II. System Process Flow

Three-Stage Cooling System:

1. First-Stage Pre-Cooling
   • Raw biogas (20-80℃) enters the plate heat exchanger.
   • Initial heat exchange with return cold biogas significantly reduces the temperature.
2. Second-Stage Deep Cooling
   • Pre-cooled biogas enters the evaporator of the refrigeration unit.
   • Temperature is precisely controlled within the set dew point range.
3. Third-Stage Gas-Water Separation
   • Cooled biogas enters the high-efficiency gas-water separator.
   • Condensed moisture and impurities are effectively separated and automatically discharged.

Intelligent Temperature Control System:

• PLC automatically adjusts the cooling temperature according to biogas composition and flow rate.
• Ensures the outlet temperature remains stable within the process requirements.

III. Working Principle

High-Efficiency Heat Exchange Mechanism:

• Adopts high-efficiency plate heat exchangers with a heat transfer coefficient 1.5 times that of traditional equipment.
• Multi-stage cooling design reduces temperature step by step to avoid temperature difference shock.

Intelligent Control Principle:

• Real-time monitors changes in biogas composition and flow rate.
• Automatically adjusts refrigeration capacity to ensure stable outlet temperature.
• Fault self-diagnosis system provides early warning of equipment abnormalities.

IV. Core Competitive Advantages

1. Precise Temperature Control Capability
   • Temperature control accuracy of ±1℃.
   • Adapts to cooling requirements of different biogas compositions.
2. High-Efficiency and Energy-Saving Design
   • Uses high-efficiency refrigeration compressors with a COP value of over 4.0.
   • Waste heat recovery system can recover more than 30% of waste heat.
3. Strong Processing Capacity
   • Processing capacity range: 60-10000 Nm³/min.
   • Suitable for small biogas stations to large landfills.
4. Intelligent Operation and Maintenance System
   • Remote monitoring and fault diagnosis.
   • Predictive maintenance reduces downtime.

V. Technical Strength

Innovative Technologies:

• Multivariable adaptive control algorithm.
• Corrosion-resistant heat exchanger material technology.
• High-efficiency gas-water separation technology.

Manufacturing Processes:

• Integrated skid-mounted design ensures on-site installation precision.
• Strict airtightness testing standards.
• Professional explosion-proof design certification.

VI. Product Series Introduction

Standard Series:

• YP-100 Series: 60-500 Nm³/min
• YP-500 Series: 600-2000 Nm³/min
• YP-2000 Series: 2500-5000 Nm³/min
• YP-5000 Series: 6000-10000 Nm³/min

Customization Options:

• Explosion-proof grade upgrade.
• Remote monitoring system.
• Waste heat recovery device.

VII. Application Scenario Solutions

Landfills:

• Pre-treatment of biogas in large landfills; pre-treatment for biogas power generation projects.

Agricultural Biogas Projects:

• Biogas treatment in livestock and poultry farms; biogas projects using agricultural waste.

Industrial Biogas:

• Biogas from food processing wastewater; biogas treatment in breweries.

Energy Utilization:

• Biogas purification to bio-natural gas; pre-treatment for biogas power generation.

VIII. Detailed Technical Specifications

Parameter Category	Technical Indicators	Remarks
Inlet Air Temperature	≤20-80℃	Wide temperature range adaptation
Working Pressure	0.05-8.0 MPa	Standard: 0.7 MPa
Gas Composition	Provided on demand	Customized design
Pressure Dew Point	≤2℃~15℃	Precisely controllable
Pressure Loss	≤0.05 MPa	Low-resistance design
Gas Processing Capacity	60-10000 Nm³/min	Large-scale equipment series
Working Cycle	Continuous operation, stable and reliable	Intelligent optional
Control Mode	PLC programmable control	Fully automatic operation
Installation Method	Indoor flat ground, no foundation required	Rapid deployment
Cooling Water Pressure	0.2~0.4 MPa	Industrial circulating water
Cooling Water Temperature	≤32℃
Power Supply	380V/50HZ
Equipment Weight	4100~18500 kg	Heavy-duty equipment
Overall Dimensions (L×W×H)	L(3050~8000)×W(2100~3300)×H(2200~2850) mm	Integrated skid-mounted design
